Visualizations#
Matplotlib settings:#
plt.rcParams controls the default styles and behaviors of plots. There are a lot of options.
The common ones are:
plt.rcParams[‘figure.figsize’]: Default size of the figure in inches.
plt.rcParams[‘figure.dpi’]: Resolution of the figure in dots per inch
plt.rcParams[‘axes.titlesize’]
plt.rcParams[‘axes.labelsize’]
plt.rcParams[‘font.size’]
plt.rcParams[‘font.family’]
plt.rcParams[‘lines.linewidth’]
plt.rcParams[‘legend.loc’]
Reset rcParams to default with: plt.rcdefaults()
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
import warnings
warnings.filterwarnings('ignore')

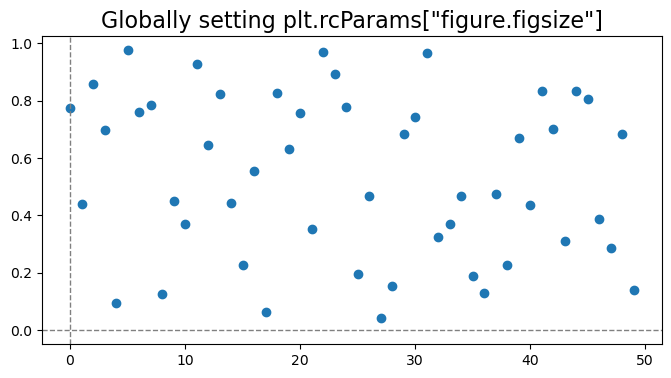

plt.rcParams['figure.figsize'] = (8, 4)
rng = np.random.default_rng(42)
# Adding these here since I always use them and still forget the syntax.
plt.axvline(x=0, color='gray', linestyle='--', linewidth=1)
plt.axhline(y=0, color='gray', linestyle='--', linewidth=1)
plt.scatter(np.arange(50), rng.random(50), color='tab:blue')
plt.title('Globally setting plt.rcParams["figure.figsize"]', fontsize=16)
plt.show()

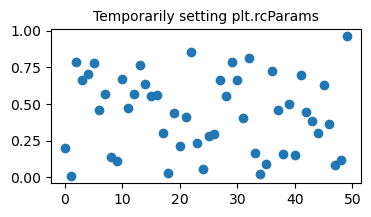

with plt.rc_context({'figure.figsize': [4, 2], 'axes.titlesize': 10}):
plt.scatter(np.arange(50), rng.random(50), color='tab:blue')
plt.title('Temporarily setting plt.rcParams')
plt.show()
Matplotlib has a list of named colors here
Coolors is also a great website for picking color palletes

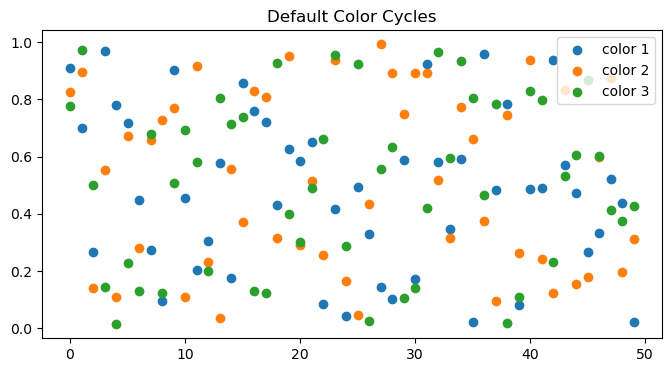

plt.scatter(np.arange(50), rng.random(50), label='color 1')
plt.scatter(np.arange(50), rng.random(50), label='color 2')
plt.scatter(np.arange(50), rng.random(50), label='color 3')
plt.title('Default Color Cycles')
plt.legend()
plt.show()
from cycler import cycler
new_color_cycle = cycler(color=['#929591', '#bf77f6', '#a2cffe'])
with plt.rc_context({'axes.prop_cycle': new_color_cycle}):
plt.scatter(np.arange(50), rng.random(50), label='color 1')
plt.scatter(np.arange(50), rng.random(50), label='color 2')
plt.scatter(np.arange(50), rng.random(50), label='color 3')

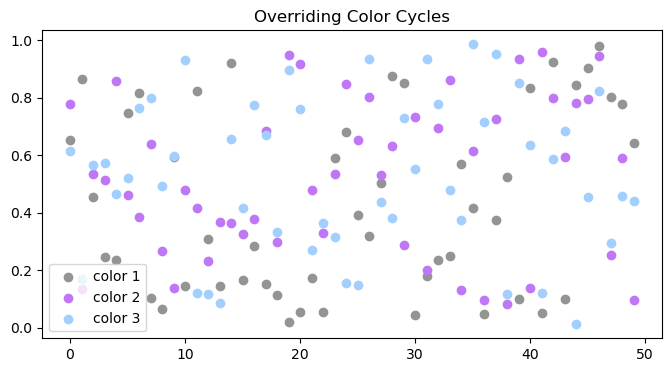

plt.title('Overriding Color Cycles')
plt.legend()
plt.show()
Subplots#
When you create a grid of subplots using plt.subplots(rows, cols), Matplotlib returns an array of Axes objects that can be accessed with axs[row, column].
rows = 2
columns = 3

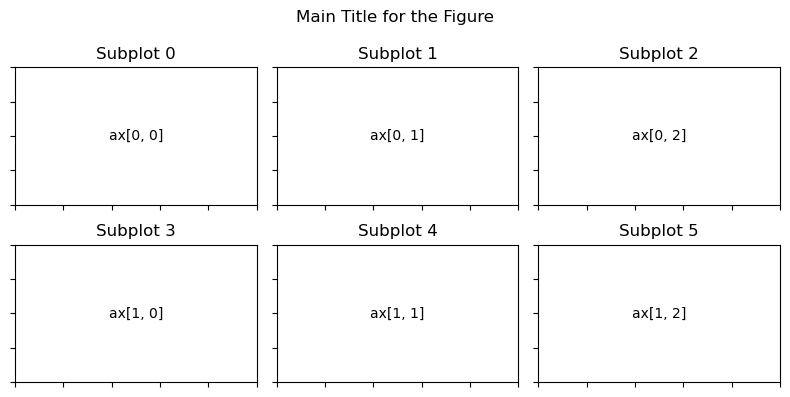

fig, axs = plt.subplots(rows, columns)
for row in range(rows):
for col in range(columns):
axs[row, col].text(0.5, 0.5, f"ax[{row}, {col}]", va="center", ha="center")
axs[row, col].tick_params(labelbottom=False, labelleft=False)
axs[row, col].set_title(f"Subplot {row*columns+col}")
fig.suptitle("Main Title for the Figure")
plt.tight_layout()
sharex=True allows the subplots to use the same x-axis.
ax.set() can be used to set multiple properties at once.

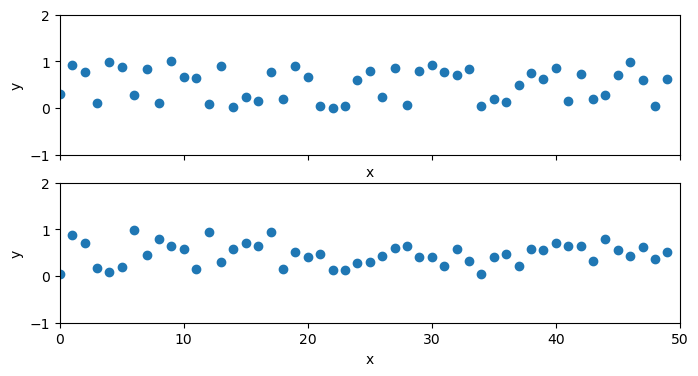

fig, axs = plt.subplots(2, 1, figsize=(8, 4), sharex=True)
for ax in axs:
ax.scatter(np.arange(50), rng.random(50))
ax.set(xlim=(0, 50), ylim=(-1, 2), xlabel='x', ylabel='y', title='')
plt versus ax:#
plt.xlabel()→ax.set_xlabel()plt.ylabel()→ax.set_ylabel()plt.xlim()→ax.set_xlim()plt.ylim()→ax.set_ylim()plt.title()→ax.set_title()
Gestalt’s Six Principles of Visual Perception#
Define how people interact with and create order out of visual stimuli.
Perceptual grouping#
Proximity#
We perceive objects that are physically close together as belonging to part of a group.

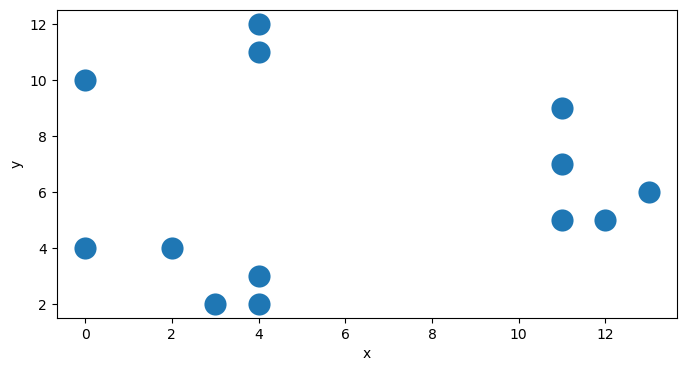

group_size = 5
group0 = rng.integers(low=0, high=5, size=(group_size,2))
group1 = rng.integers(low=[[10], [5]], high=[[15], [10]], size=(2, group_size)).T
group2 = rng.integers(low=[[0], [10]], high=[[5], [15]], size=(2, group_size)).T
df = pd.DataFrame(np.concatenate([group0, group1, group2]), columns=['x', 'y'])
df['group'] = df.index // group_size
sns.scatterplot(data=df, x='x', y='y', s=300)
plt.show()

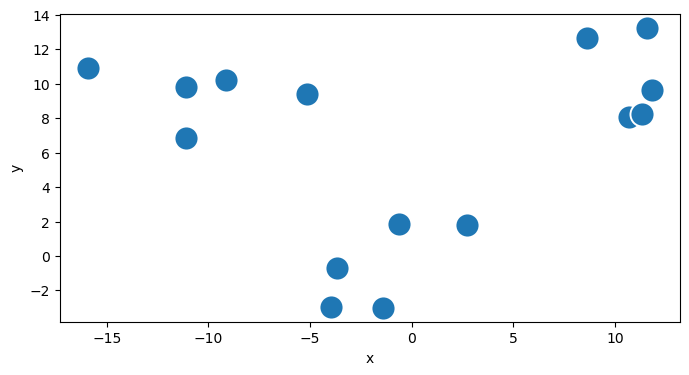

group_size = 5
group0 = rng.normal(loc=0, scale=2.0, size=(group_size, 2))
group1 = rng.normal(loc=10, scale=2.0, size=(2, group_size)).T
group2 = rng.normal(loc=10, scale=2.0, size=(2, group_size)).T
df = pd.DataFrame(np.concatenate([group0, group1, group2]), columns=['x', 'y'])
df['group'] = df.index // group_size
df.loc[df.group==1, 'x'] -= 20
sns.scatterplot(data=df, x='x', y='y', s=300)
plt.show()
Similarity#
Objects that are of similar color, shape, size, or orientation are perceived as related or belonging to part of a group.

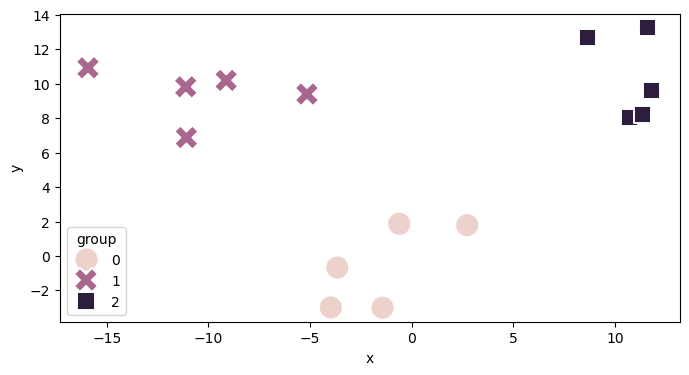

sns.scatterplot(data=df, x='x', y='y', hue="group", style="group", s=300)
plt.show()

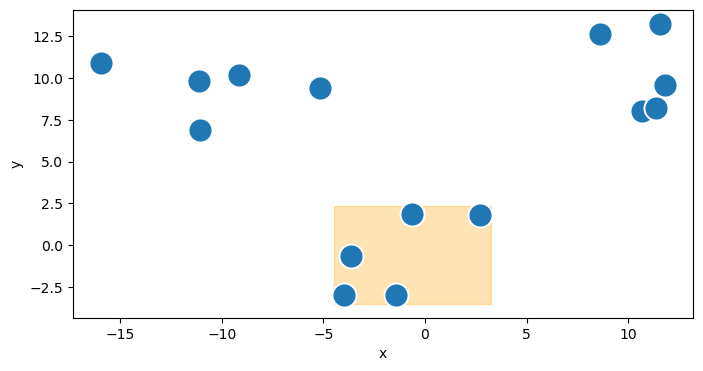

Enclosure#
objects that are physically enclosed together as belonging to part of a group.
x_min = df.loc[df.group==0, 'x'].min() - 0.5
x_max = df.loc[df.group==0, 'x'].max() + 0.5
y_min = df.loc[df.group==0, 'y'].min() - 0.5
y_max = df.loc[df.group==0, 'y'].max() + 0.5
highlight = plt.Rectangle((x_min, y_min),
x_max-x_min, y_max-y_min,
color='orange', alpha=0.3)
plt.gca().add_patch(highlight)
sns.scatterplot(data=df, x='x', y='y', s=300)
plt.show()

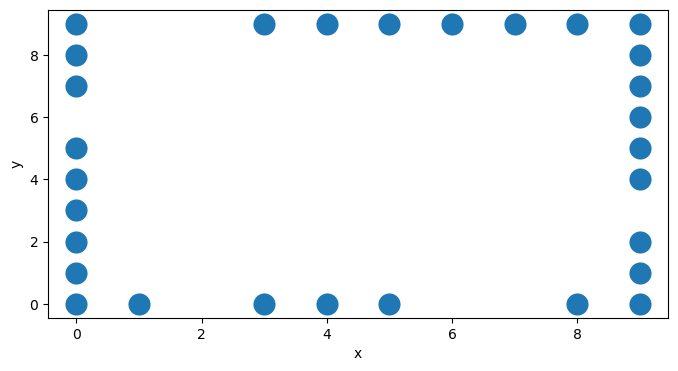

Closure#
People like things to be simple and to fit in the constructs that are already in our heads
edge_points = 20
left = rng.integers(low=[[0], [0]], high=[[1], [10]], size=(2, edge_points)).T
right = rng.integers(low=[[9], [0]], high=[[10], [10]], size=(2, edge_points)).T
top = rng.integers(low=[[0], [9]], high=[[10], [10]], size=(2, edge_points)).T
bottom = rng.integers(low=[[0], [0]], high=[[10], [1]], size=(2, edge_points)).T
df = pd.DataFrame(np.concatenate([left, right, top, bottom]), columns=['x', 'y'])
sns.scatterplot(data=df, x='x', y='y', s=300)
plt.show()
Continuity#
Our eyes seek the smoothest path and naturally create continuity in what we see even where it may not explicitly exist

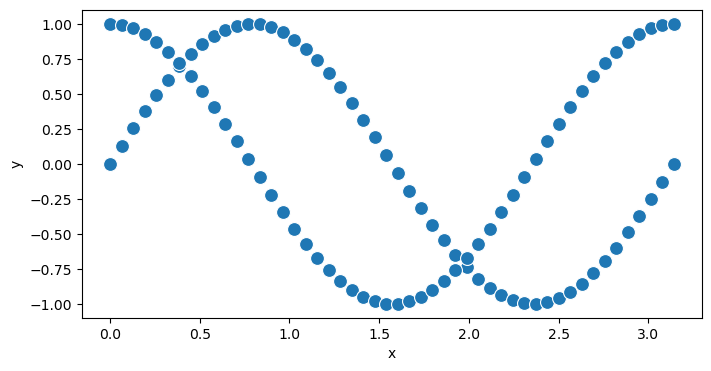

df = pd.DataFrame({
'y': np.concatenate((np.sin(2*np.pi*np.linspace(0, 1)), np.cos(2*np.pi*np.linspace(0, 1)))),
'x': np.concatenate((np.linspace(0, np.pi), np.linspace(0, np.pi)))
})
sns.scatterplot(data=df, x='x', y='y', s=100)
plt.show()
Connection#
objects that are physically connected are thought of as part of a group

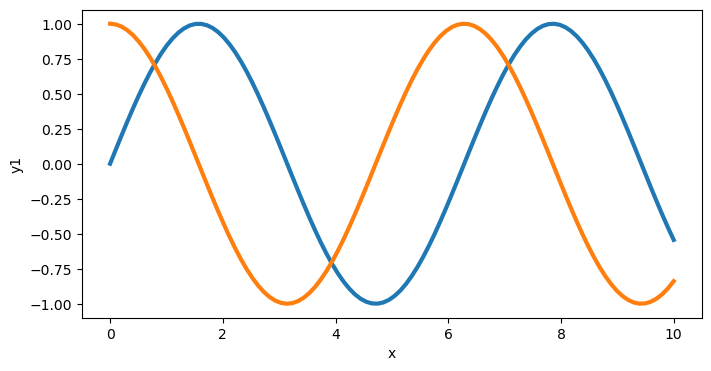

x = np.linspace(0, 10, 100)
y1 = np.sin(x)
y2 = np.cos(x)
df = pd.DataFrame({'x': x, 'y1': y1, 'y2': y2})
sns.lineplot(data=df, x='x', y='y1', linewidth=3, markers=True, dashes=False, errorbar=None)
sns.lineplot(data=df, x='x', y='y2', linewidth=3, markers=True, dashes=False, errorbar=None)
plt.show()
Plot examples#
Tip
A lot of these examples come from Cole Nussbaumer Knaflic’s great book: Storytelling with Data: A Data Visualization Guide for Business Professionals

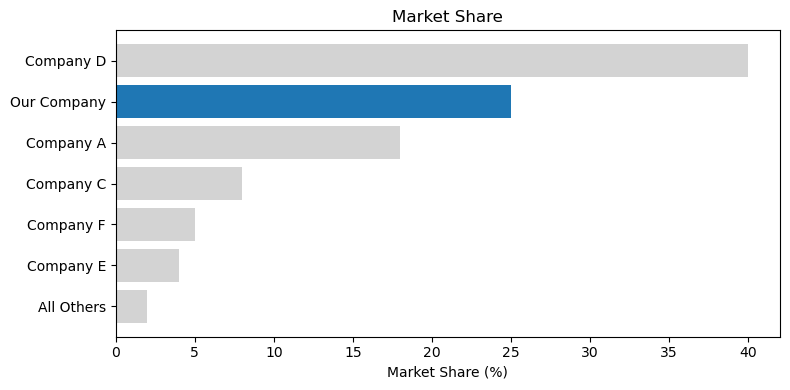

companies = ['Company D', 'Our Company', 'Company A', 'Company C', 'Company F', 'Company E', 'All Others']
market_share = [40, 25, 18, 8, 5, 4, 2]
colors = ['lightgray', 'tab:blue', 'lightgray', 'lightgray', 'lightgray', 'lightgray', 'lightgray']
plt.figure(figsize=(8, 4))
plt.barh(companies, market_share, color=colors)
plt.xlabel('Market Share (%)')
plt.title('Market Share')
plt.gca().invert_yaxis()
plt.tight_layout()
plt.show()
x = rng.uniform(500, 4000, 50)
y = 3 - 2 * np.exp(-x / 1500) + rng.normal(0, 0.2, 50) # simulated trend with noise
plt.scatter(x, y, color='lightgray', label='Data')
plt.scatter(np.mean(x), np.mean(y), color='black', s=75, label='Average')
plt.text(np.mean(x) - 500, np.mean(y) + 0.1, 'Average', color='black', fontsize=12, weight='bold',
bbox=dict(facecolor='white', edgecolor='grey', alpha=0.75, boxstyle='round, pad=0.5'))

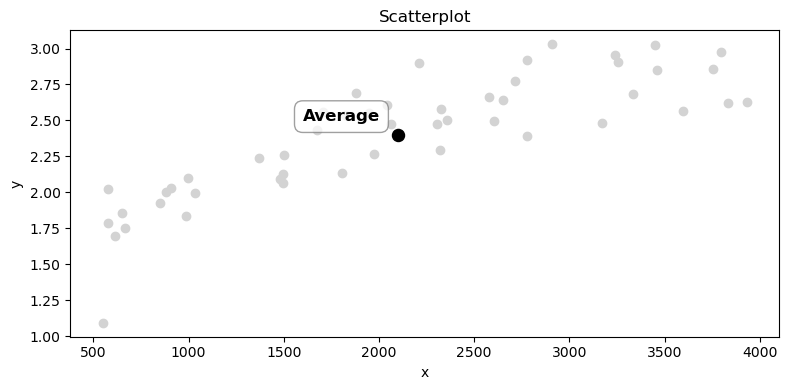

plt.title('Scatterplot')
plt.xlabel('x')
plt.ylabel('y')
plt.tight_layout()
plt.show()

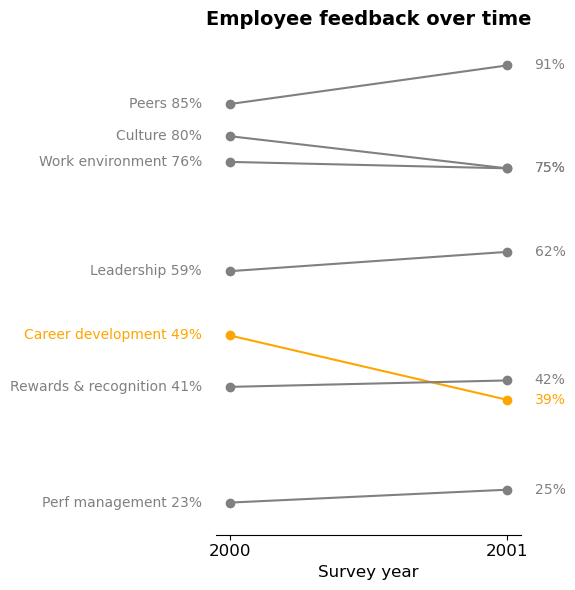

categories = ['Peers', 'Culture', 'Work environment', 'Leadership', 'Career development', 'Rewards & recognition', 'Perf management']
start_vals = [85, 80, 76, 59, 49, 41, 23]
end_vals = [91, 75, 75, 62, 39, 42, 25]
dates = [2000, 2001]
colors = ['gray', 'gray', 'gray', 'gray', 'orange', 'gray', 'gray']
fig, ax = plt.subplots(figsize=(6, 6))
for i, category in enumerate(categories):
ax.plot(dates, [start_vals[i], end_vals[i]], marker='o', color=colors[i])
ax.text(dates[0]-0.1, start_vals[i], f'{category} {start_vals[i]}%', va='center', ha='right', color=colors[i])
ax.text(dates[1]+0.1, end_vals[i], f'{end_vals[i]}%', va='center', color=colors[i])
plt.title('Employee feedback over time', fontsize=14, weight='bold')
plt.xticks(dates, [str(date) for date in dates], fontsize=12)
plt.ylim(min(start_vals+end_vals)-5, max(start_vals+end_vals)+5)
ax.set_xlabel('Survey year', fontsize=12)
ax.set_ylabel('Percent favorable', fontsize=12)
# Hide the y-axis and spines for cleaner look
ax.spines['left'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.spines['top'].set_visible(False)
ax.get_yaxis().set_visible(False)
plt.tight_layout()
plt.show()

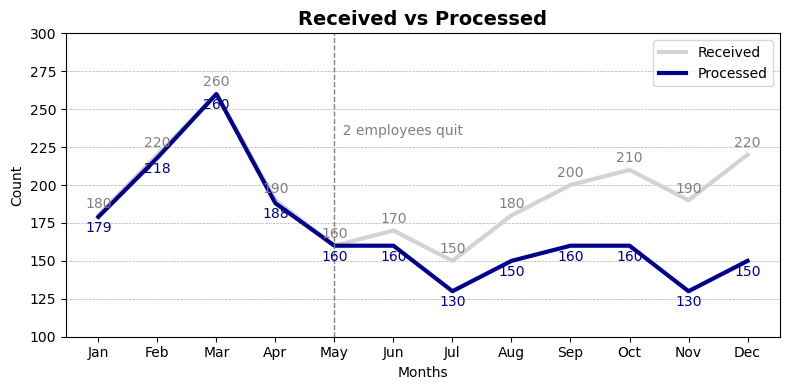

months = ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec']
received = [180, 220, 260, 190, 160, 170, 150, 180, 200, 210, 190, 220]
processed = [v-(10*(i-4)) if i > 4 else v+rng.integers(low=-2, high=2) for i, v in enumerate(received)]
# Plot received data in gray and processed data in blue
plt.plot(months, received, color='lightgray', linewidth=3, label='Received')
plt.plot(months, processed, color='darkblue', linewidth=3, label='Processed')
# Annotate values on the plot
for i, (r, p) in enumerate(zip(received, processed)):
plt.text(months[i], r + 5, str(r), color='gray', fontsize=10, ha='center')
plt.text(months[i], p - 10, str(p), color='darkblue', fontsize=10, ha='center')
# Add title and labels
plt.title('Received vs Processed', fontsize=14, weight='bold')
plt.xlabel('Months')
plt.ylabel('Count')
plt.axvline(x='May', color='gray', linestyle='--', linewidth=1)
plt.text('May', 240, ' 2 employees quit',
color='gray', fontsize=10, va='top', ha='left')
plt.legend(loc='upper right')
plt.grid(True, axis='y', linestyle='--', linewidth=0.5)
plt.ylim(100, 300)
plt.tight_layout()
plt.show()
x = np.linspace(0, 10, 100)
y = np.sin(x)
df = pd.DataFrame({'x': x, 'y': y})
plt.plot(df['x'], df['y'].diff(), color='orange', label='y.diff()')
plt.axhline(y=0, color='gray', linestyle='--')

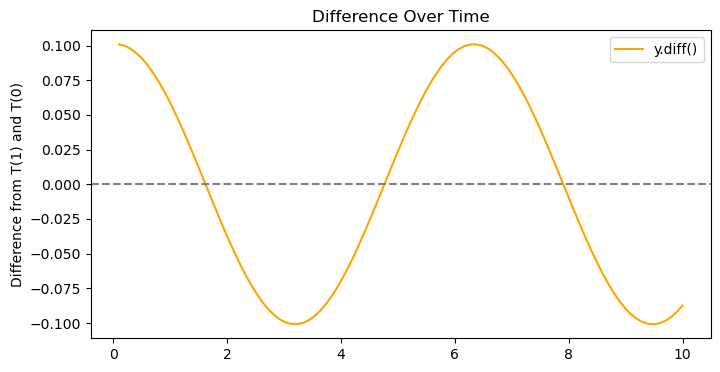

plt.title('Difference Over Time')
plt.ylabel('Difference from T(1) and T(0)')
plt.legend()
plt.show()
def golden_spiral(a=1, b=0.306349, num_points=1000):
"""
Generate points for a golden spiral in polar coordinates and convert to Cartesian.
Parameters:
- a: scale factor
- b: growth factor
- num_points: number of points in the spiral
"""
theta = np.linspace(0, 4 * np.pi, num_points)
r = a * np.exp(b * theta)
x = r * np.cos(theta)
y = r * np.sin(theta)
return x, y
x, y = golden_spiral()
fig, ax = plt.subplots(figsize=(8, 8))
ax.plot(x, y, color='gold', linewidth=200)
ax.plot(x, y, color='#a2cffe', linewidth=100)
ax.plot(x, y, color='#82cafc', linewidth=50)
ax.plot(x, y, color='#a4be5c', linewidth=5)
# ax.plot(x, y, color='gold', linewidth=200)
# ax.plot(x, y, color='gold', linewidth=200)
ax.set_aspect('equal')
ax.axis('off')

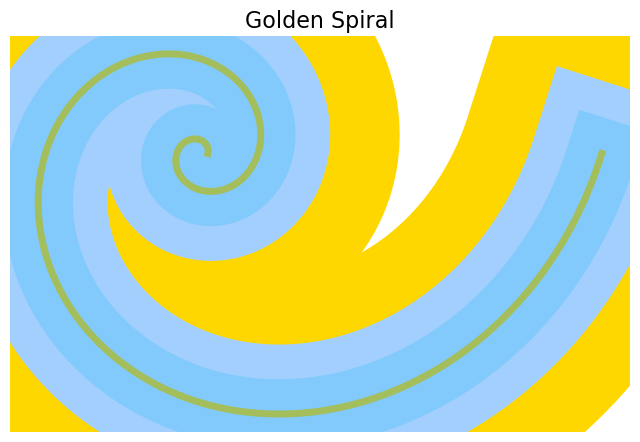

plt.title('Golden Spiral', fontsize=16)
plt.show()
import random
def clamp(value, min_value=0, max_value=255):
"""Clamp the value between min_value and max_value."""
return max(min_value, min(value, max_value))
def random_walk_color(n, step_size=30, seed=None):
"""
Perform a random walk in RGB color space to generate n hex colors.
Parameters:
- n (int): Number of colors to generate.
- step_size (int): Maximum change in each RGB channel per step.
Returns:
- List[str]: List of n hexadecimal color strings.
"""
if seed is not None:
random.seed(seed)
print(f"seed: {seed}")
# Initialize with a random starting color
current_r = random.randint(0, 255)
current_g = random.randint(0, 255)
current_b = random.randint(0, 255)
colors = [f'#{current_r:02X}{current_g:02X}{current_b:02X}']
for _ in range(n - 1):
# Random step for each channel
step_r = random.randint(-step_size, step_size)
step_g = random.randint(-step_size, step_size)
step_b = random.randint(-step_size, step_size)
# Update current color with clamping
current_r = clamp(current_r + step_r)
current_g = clamp(current_g + step_g)
current_b = clamp(current_b + step_b)
# Append the new color in hex format
hex_color = f'#{current_r:02X}{current_g:02X}{current_b:02X}'
colors.append(hex_color)
return colors
num_colors = 100 # Number of colors to generate
step = 15 # Maximum step size per channel

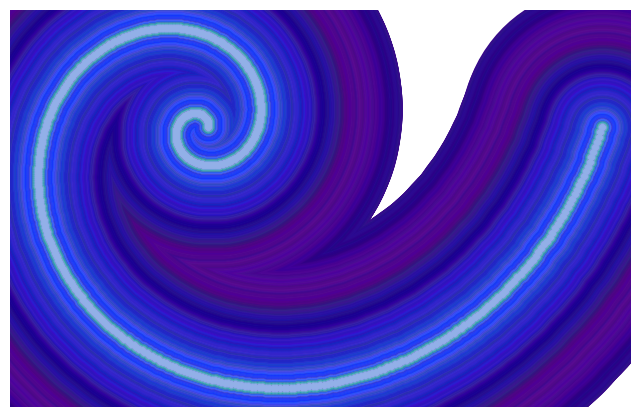

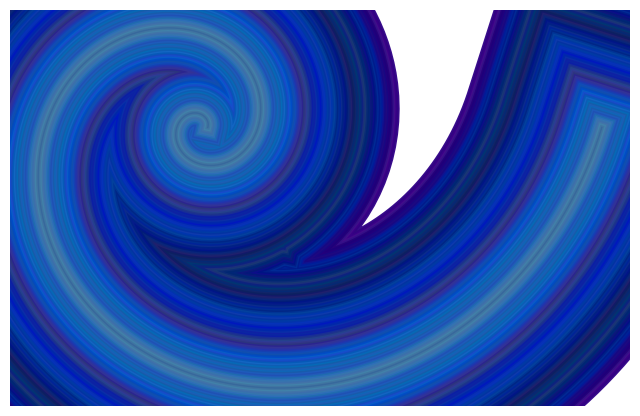

widths = np.linspace(200, 1, num_colors)
x, y = golden_spiral()
hex_colors = random_walk_color(num_colors, step_size=step, seed=42)
# for idx, color in enumerate(hex_colors, 1):
fig, ax = plt.subplots(figsize=(8, 8))
for width, color in zip(widths, hex_colors):
ax.plot(x, y, color=color, linewidth=width)
ax.set_aspect('equal')
ax.axis('off')
plt.show()
seed: 42
step = 10
hex_colors = random_walk_color(num_colors, step_size=step)
fig, ax = plt.subplots(figsize=(6, 6))
for width, color in zip(widths, hex_colors):
ax.scatter(x, y, color=color, linewidth=width*.9, marker='.')
ax.set_aspect('equal')
ax.axis('off')
plt.xlim(-20, 30)
plt.show()
seed: None
num_colors = 1000 # Number of colors to generate
step = 5 # Maximum step size per channel
widths = np.geomspace(200, 1, num_colors)
x, y = golden_spiral()
hex_colors = random_walk_color(num_colors, step_size=step, seed=42)
# for idx, color in enumerate(hex_colors, 1):
fig, ax = plt.subplots(figsize=(8, 8))
for width, color in zip(widths, hex_colors):
# ax.plot(x, y, color=color, linewidth=width)
ax.scatter(x, y, color=color, linewidth=width, marker='.')
ax.set_aspect('equal')
ax.axis('off')
plt.show()
seed: 42
