Time Series#
This notebook contains a high level overview of time series concepts using a dummy dataset.
Data Generation#
Generate Data with linear trend with a cyclic pattern and random noise
Show code cell source
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from scipy import stats
from statsmodels.tsa.api import ExponentialSmoothing, SimpleExpSmoothing, Holt
from statsmodels.tsa.arima.model import ARIMA
from statsmodels.stats.diagnostic import acorr_ljungbox
from statsmodels.tsa.stattools import adfuller, acf, pacf
from statsmodels.graphics.tsaplots import plot_acf, plot_pacf
from statsmodels.tsa.seasonal import MSTL
import lightgbm as lgb
import warnings
warnings.filterwarnings('ignore')
plt.rcParams['figure.figsize'] = (12, 4)
rng = np.random.default_rng(42)
t = np.arange(1, 1000)
df = pd.DataFrame({
'yearly_seasonality': np.sin(2*np.pi*t / 365),
'weekly_seasonality': 0.25*np.sin(2*np.pi*t / 365*52),
'trend': 2+t*.005,
'noise': rng.normal(2, scale=0.15, size=len(t)),
},
index=pd.date_range(start='2000-01-01', periods=len(t), freq='D')
)
df['total'] = df['yearly_seasonality'] + df['weekly_seasonality'] + df['trend'] + df['noise']
train_cutoff = int(len(df) * 0.8)
target_df = df.loc[:, 'total']
train_df, test_df = target_df.iloc[:train_cutoff], target_df.iloc[train_cutoff:]
def plot_df(df, train_df):
plt.axvline(x=train_df.index[-1], color='gray', linestyle='--', linewidth=1)
plt.text(train_df.index[-1], train_df.max()+2, 'Train/test cut off',
color='gray', fontsize=15, va='top', ha='left')
plt.plot(df['total'], label='Total (sum of all)')
plt.plot(df['yearly_seasonality'], label='Yearly Seasonality', alpha=.4)
plt.plot(df['weekly_seasonality'], label='Weekly Seasonality', alpha=.4)
plt.plot(df['trend'], label='Trend', alpha=.4)
plt.plot(df['noise'], label='Noise', alpha=.4)
plt.legend()
plt.show()

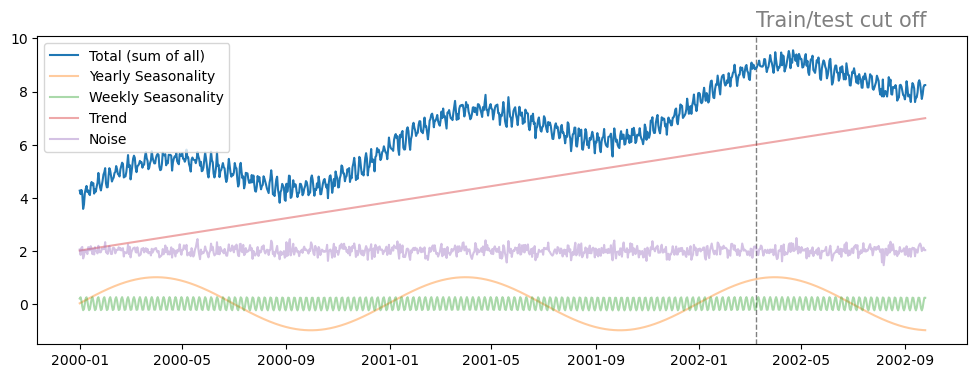

plot_df(df, train_df)
Also creating monthly data since ARIMA models are too compute intensive for daily.
Show code cell source
# Resampling was a bit too naive and lost all of the noise in the dataset.
# monthly_df = df.resample('ME').mean().iloc[1:-1] # Remove the first and last points for a pretty plot
t = np.arange(1, 300)
monthly_df = pd.DataFrame({
'yearly_seasonality': np.sin(2*np.pi*t / 12),
'weekly_seasonality': 0.25*np.sin(2*np.pi*t / 12*52),
'trend': 3+t*0.005,
'noise': rng.normal(2, scale=0.15, size=len(t)),
},
index=pd.date_range(start='2000-01-01', periods=len(t), freq='ME')
)
monthly_df['total'] = monthly_df['yearly_seasonality'] + monthly_df['weekly_seasonality'] + monthly_df['trend'] + monthly_df['noise']
monthly_train_cutoff = int(len(monthly_df) * 0.8)
monthly_target_df = monthly_df.loc[:, 'total']
monthly_train_df, monthly_test_df = monthly_target_df.iloc[:monthly_train_cutoff], monthly_target_df.iloc[monthly_train_cutoff:]

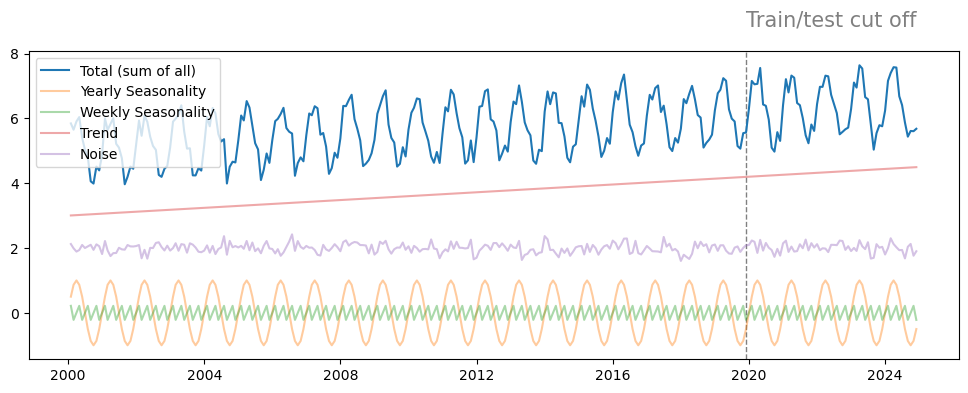

plot_df(monthly_df, monthly_train_df)
Stationary#
A time series is stationary if it does not exhibit any long term trends or obvious seasonality. It must have:
constant variance through time
constant mean through time
Differencing can help stabilize the mean of a time series by removing changes in the level of a time series, and so eliminating trends. This can also remove seasonality, if differences are taken appropriately (e.g. differencing observations 1 year apart to remove a yearly trend).
Augmented Dickey-Fuller#
We can use the Augmented Dickey-Fuller (ADF) test to test if the data is stationary. A p-value below 0.05 and a test statistic less than the critical value at the 5% significance level, indicates that the data is stationary at the 5% significance level.
from statsmodels.tsa.stattools import adfuller
def adf_test(timeseries):
print("Results of Dickey-Fuller Test:")
dftest = adfuller(timeseries, autolag="AIC")
dfoutput = pd.Series(
dftest[0:4],
index=[
"Test Statistic",
"p-value",
"#Lags Used",
"Number of Observations Used",
],
)
for key, value in dftest[4].items():
dfoutput["Critical Value (%s)" % key] = value
print(dfoutput)
adf_test(train_df)
print('\nWith differencing:')
adf_test(train_df.diff().iloc[1:])
Results of Dickey-Fuller Test:
Test Statistic 0.231933
p-value 0.973997
#Lags Used 18.000000
Number of Observations Used 780.000000
Critical Value (1%) -3.438761
Critical Value (5%) -2.865253
Critical Value (10%) -2.568747
dtype: float64
With differencing:
Results of Dickey-Fuller Test:
Test Statistic -4.108587
p-value 0.000937
#Lags Used 21.000000
Number of Observations Used 776.000000
Critical Value (1%) -3.438805
Critical Value (5%) -2.865272
Critical Value (10%) -2.568757
dtype: float64
ACF (Autocorrelation Function)#
ACF measures the correlation between the time series and its lagged values.
ACF is useful for identifying MA (Moving Average) components in time series models. If the ACF cuts off after a certain lag (e.g., drops to zero), it suggests that the series can be modeled by an MA process up to that lag.
PACF (Partial Autocorrelation Function)#
PACF measures the correlation between the time series and its lagged values, but removes the influence of intermediate lags.
It provides the pure or “partial” correlation at each lag, controlling for the effects of previous lags.
PACF is useful for identifying AR (Autoregressive) components. A cut-off in the PACF indicates the order of the AR model to use (i.e., how many past terms are needed to explain the current observation).

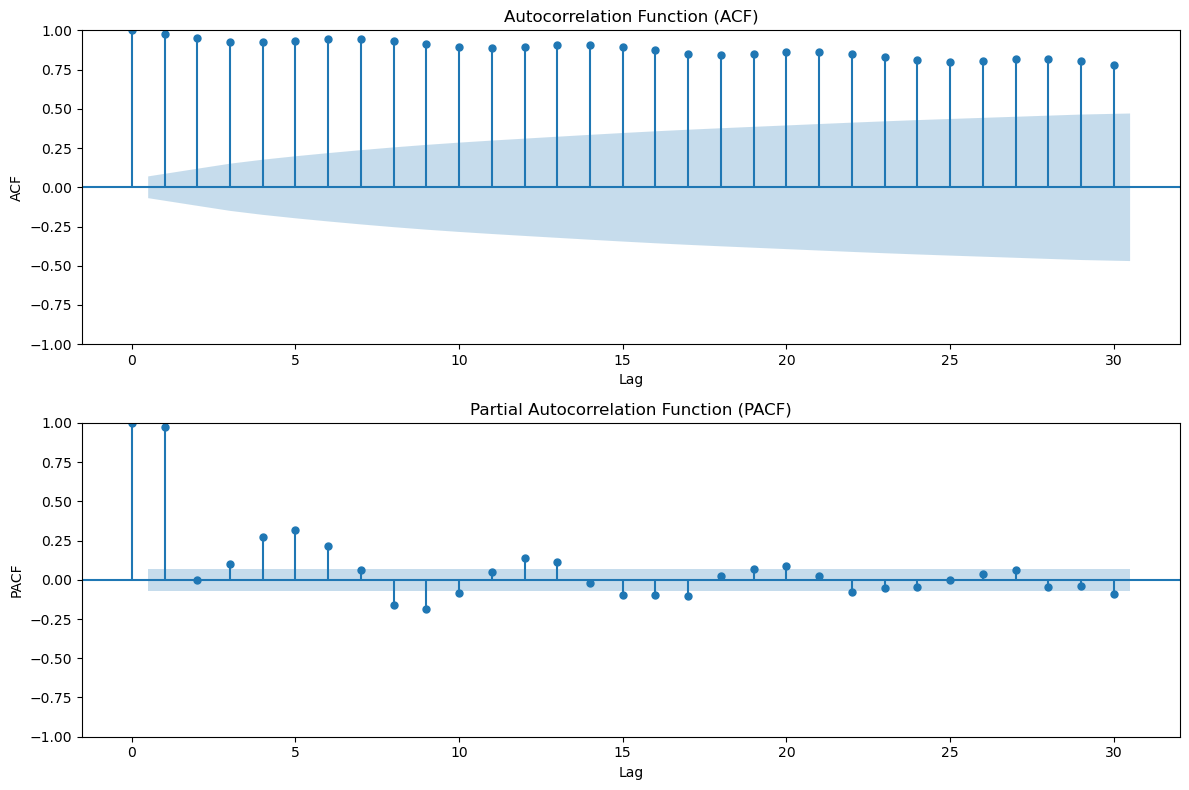

fig, axs = plt.subplots(2, 1, figsize=(12, 8))
plot_acf(train_df, lags=30, ax=axs[0])
axs[0].set_title('Autocorrelation Function (ACF)')
axs[0].set_xlabel('Lag')
axs[0].set_ylabel('ACF')
plot_pacf(train_df, lags=30, ax=axs[1])
axs[1].set_title('Partial Autocorrelation Function (PACF)')
axs[1].set_xlabel('Lag')
axs[1].set_ylabel('PACF')
plt.tight_layout()
plt.show()

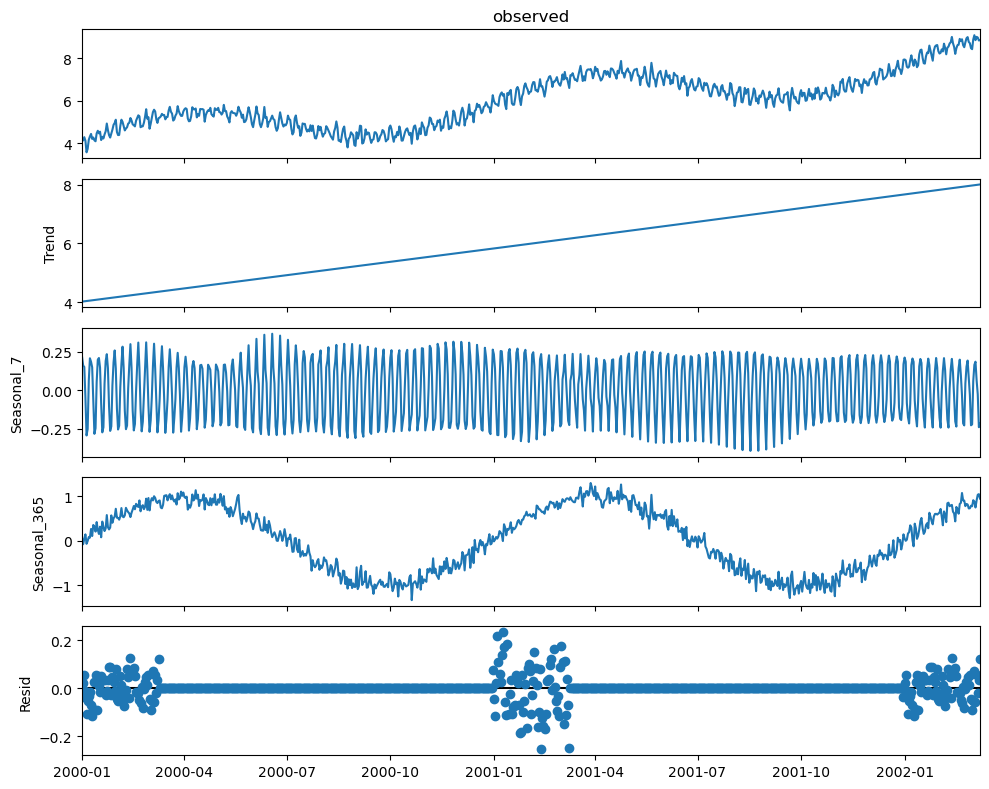

Seasonal-Trend decomposition [MSTL docs]#
# Use a larger plot for these

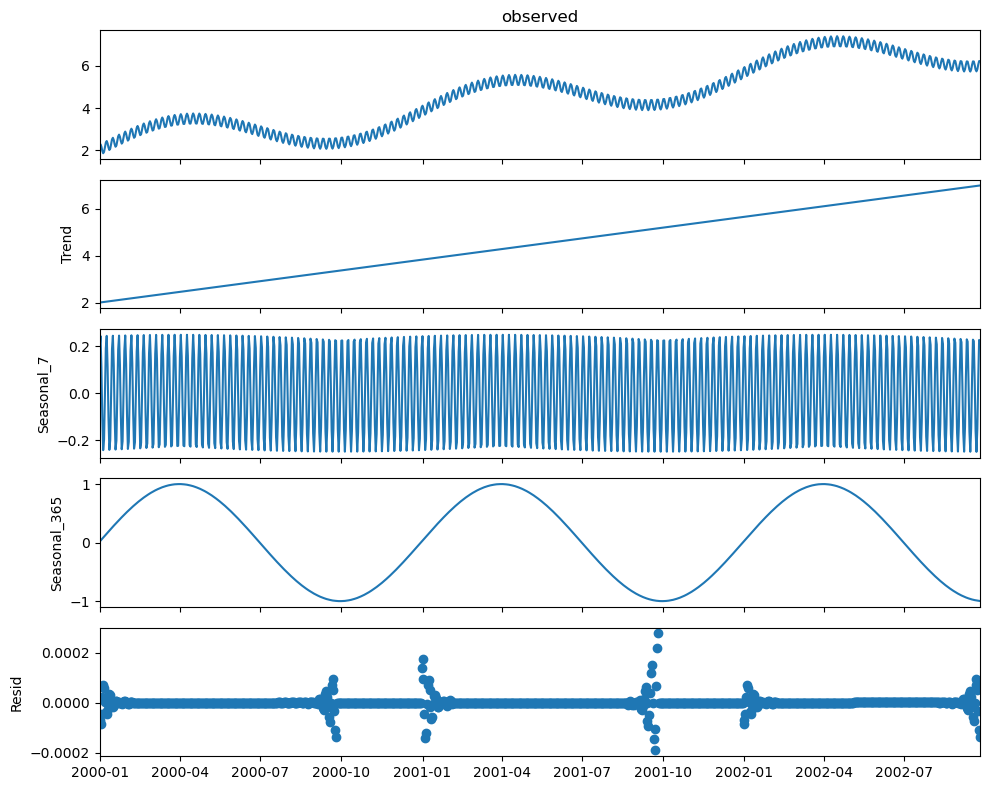

with plt.rc_context({'figure.figsize': [10, 8]}):
mstl = MSTL(train_df, periods=[7, 365])
res = mstl.fit()
fig = res.plot()

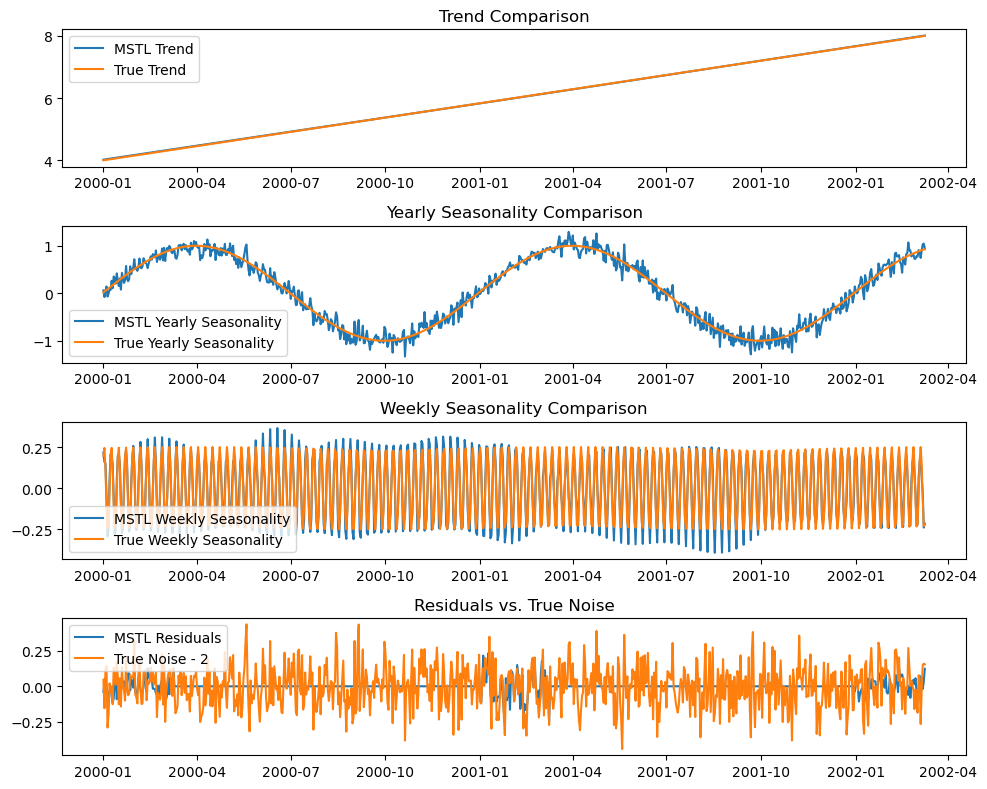

# Plot comparisions
fig, axes = plt.subplots(4, 1)
# Plotting the trend component
axes[0].plot(res.trend, label="MSTL Trend")
axes[0].plot(df.iloc[:len(train_df)]['trend']+2, label="True Trend")
axes[0].set_title("Trend Comparison")
axes[0].legend()
# Plotting the yearly seasonality component
axes[1].plot(res.seasonal['seasonal_365'], label="MSTL Yearly Seasonality")
axes[1].plot(df.iloc[:len(train_df)]['yearly_seasonality'], label="True Yearly Seasonality")
axes[1].set_title("Yearly Seasonality Comparison")
axes[1].legend()
# Plotting the weekly seasonality component
axes[2].plot(res.seasonal['seasonal_7'], label="MSTL Weekly Seasonality")
axes[2].plot(df.iloc[:len(train_df)]['weekly_seasonality'], label="True Weekly Seasonality")
axes[2].set_title("Weekly Seasonality Comparison")
axes[2].legend()
# Plotting the residuals
axes[3].plot(res.resid, label="MSTL Residuals")
axes[3].plot(df.iloc[:len(train_df)]['noise']-2, label="True Noise - 2")
axes[3].set_title("Residuals vs. True Noise")
axes[3].legend()
plt.tight_layout()
plt.show()

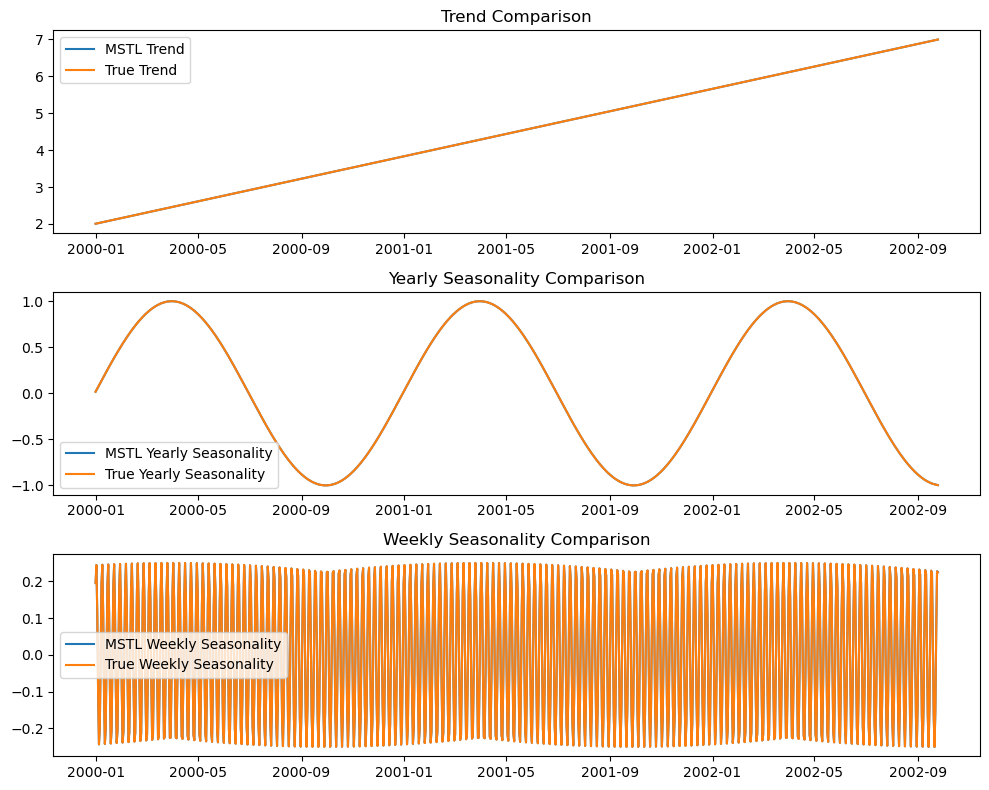

If we take away the noise, the predictions are near perfect
with plt.rc_context({'figure.figsize': [10, 8]}):
mstl = MSTL(df['total'] - df['noise'], periods=[7, 365])
res = mstl.fit()
fig = res.plot()
# Plot comparisions
fig, axes = plt.subplots(3, 1)
# Plotting the trend component
axes[0].plot(res.trend, label="MSTL Trend")
axes[0].plot(df['trend'], label="True Trend")
axes[0].set_title("Trend Comparison")
axes[0].legend()
# Plotting the yearly seasonality component
axes[1].plot(res.seasonal['seasonal_365'], label="MSTL Yearly Seasonality")
axes[1].plot(df['yearly_seasonality'], label="True Yearly Seasonality")
axes[1].set_title("Yearly Seasonality Comparison")
axes[1].legend()
# Plotting the weekly seasonality component
axes[2].plot(res.seasonal['seasonal_7'], label="MSTL Weekly Seasonality")
axes[2].plot(df['weekly_seasonality'], label="True Weekly Seasonality")
axes[2].set_title("Weekly Seasonality Comparison")
axes[2].legend()
plt.tight_layout()
plt.show()
Modeling#
Exponential Smoothing #
\( S_t = \alpha y_t + (1 - \alpha) S_{t-1} \), where
\( S_t \) is the smoothed value at time \( t \)
\( y_t \) is the actual value at time \( t \)
\( \alpha \) is the smoothing parameter, \( 0 \leq \alpha \leq 1 \)
Simple exponential smoothing won't be able to capture any of the trends on the data :(
plt.plot(train_df, label='Train')
plt.plot(test_df, label='Test')

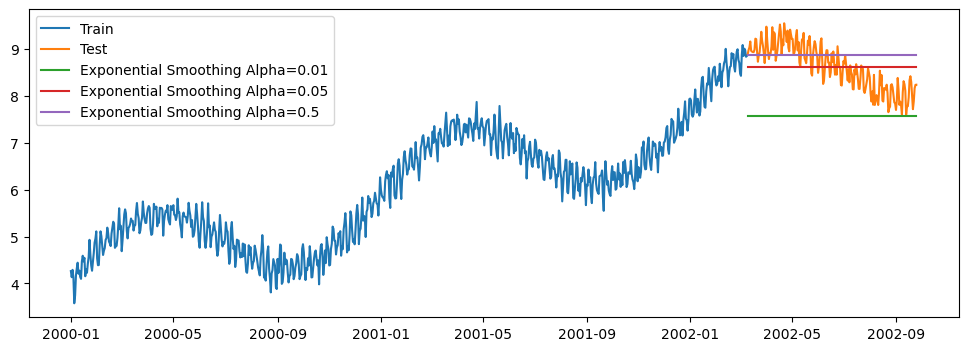

for alpha in [0.01, 0.05, 0.5]:
exp_model = SimpleExpSmoothing(train_df).fit(smoothing_level=alpha, optimized=False)
exp_smoothing_forecast = exp_model.forecast(len(test_df))
plt.plot(test_df.index, exp_smoothing_forecast, label=f'Exponential Smoothing Alpha={alpha}')
plt.legend()
plt.show()
Exponential smoothing with seasonality (Holt-Winters)#

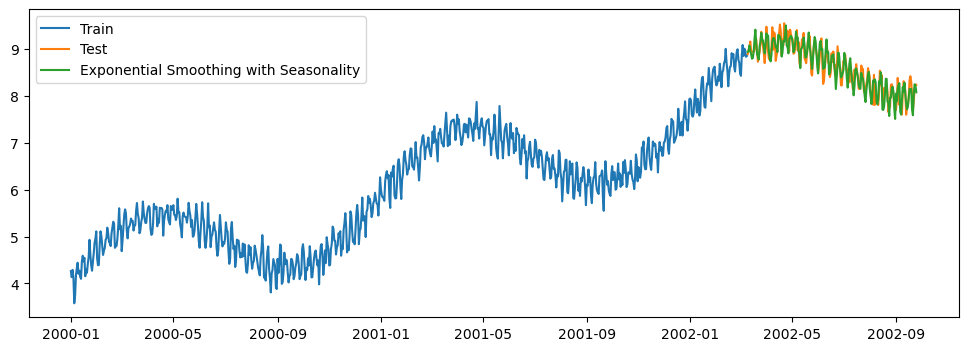

plt.plot(train_df, label='Train')
plt.plot(test_df, label='Test')
exp_model = ExponentialSmoothing(
train_df,
seasonal_periods=365,
trend="add",
seasonal="add",
).fit()
exp_smoothing_forecast = exp_model.forecast(len(test_df))
plt.plot(test_df.index, exp_smoothing_forecast, label=f'Exponential Smoothing with Seasonality')
plt.legend()
plt.show()
Model decomposition#
exp_model = ExponentialSmoothing(
train_df,
seasonal_periods=365,
trend="add",
seasonal="add"
).fit()
states = pd.DataFrame(
np.c_[exp_model.level, exp_model.trend, exp_model.season],
columns=["level", "slope", "seasonal"]
)

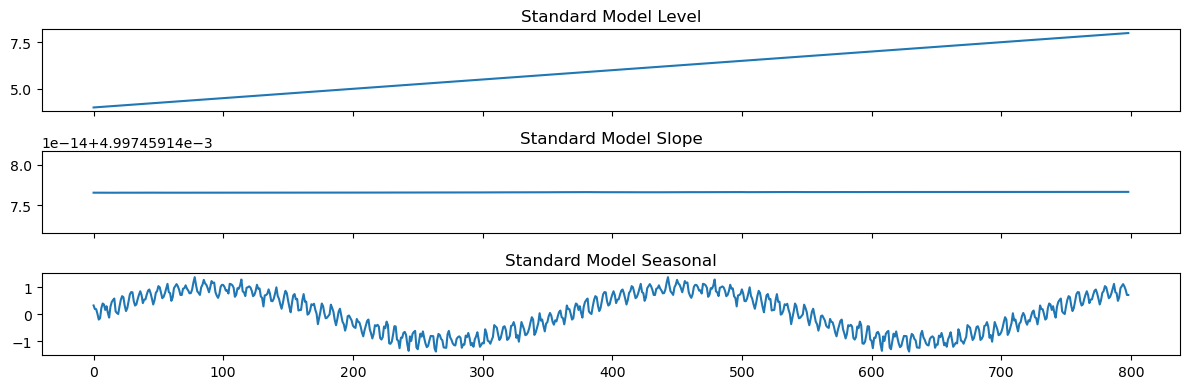

fig, axes = plt.subplots(3, 1, sharex=True)
states[["level"]].plot(ax=axes[0], title="Standard Model Level", legend=False)
states[["slope"]].plot(ax=axes[1], title="Standard Model Slope", legend=False)
states[["seasonal"]].plot(ax=axes[2], title="Standard Model Seasonal", legend=False)
plt.tight_layout()
plt.show()
ARIMA / SARIMAX(p, d, q)x(P, D, Q, s) #
Parameters:
AutoRegressive (p): Relationship between an observation and a certain number of lagged observations (previous time steps). The parameter p determines the number of lag observations included in the model.
Integrated (d): Order of differencing required to make the series stationary. Differencing is the transformation of a time series to remove trends and seasonality, and d is the number of times the differencing operation is performed.
Moving Average (q): Relationship between an observation and a residual error from a moving average model applied to lagged observations. The parameter q specifies the number of terms.
Seasonal components:
Seasonal AR (P): Similar to the AR but apply to the seasonal component of the series. The parameter P specifies the number of seasonal autoregressive terms.
Seasonal differencing order (D): How many seasonal differences are needed to make the series stationary.
Seasonal MA (Q): MA for the seasonal differences. Q specifies the number of seasonal moving average terms.
Seasonal period (s): Length of the seasonal cycle. E.g. s=12 for monthly data with an annual cycle.
Other:
Exogenous variables (X): External variables that influence the forecast but are not predicted by the model. They can include any variable thought to affect the dependent variable, such as economic indicators, weather conditions, etc.
ARIMA(0,1,1) without constant = simple exponential smoothing
I’m using monthly data here since daily data is impractical for statsmodel’s ARIMA to optimize.
from statsmodels.tsa.statespace.sarimax import SARIMAX
def fit_and_forecast(model, n_forecast):
arima_fit = model.fit(disp=0)
return arima_fit.forecast(n_forecast)
plt.plot(monthly_train_df, label='Train')
plt.plot(monthly_test_df, label='Test')

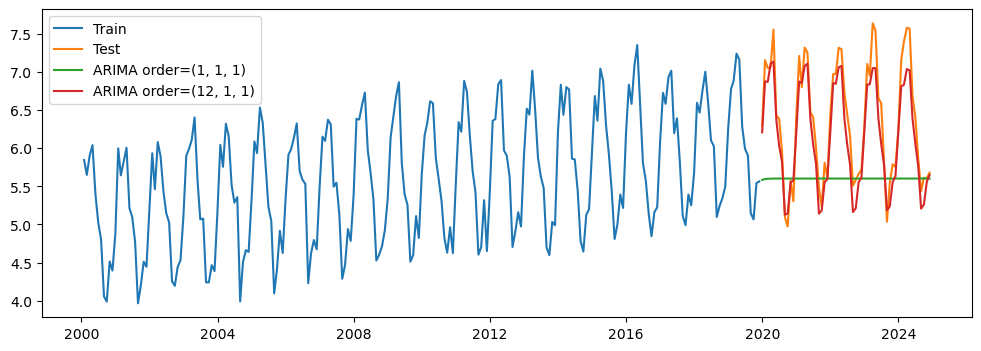

plt.plot(monthly_test_df.index, fit_and_forecast(SARIMAX(monthly_train_df, order=(1, 1, 1)), len(monthly_test_df)), label='ARIMA order=(1, 1, 1)')
plt.plot(monthly_test_df.index, fit_and_forecast(SARIMAX(monthly_train_df, order=(12, 1, 1)), len(monthly_test_df)), label='ARIMA order=(12, 1, 1)')
plt.legend()
plt.show()
def random_arima_search(train, n_trials=5):
best_aic = np.inf
best_order = None
best_seasonal_order = None
best_model = None
# Define search space for (p, d, q) and (P, D, Q, m)
p_values = range(0, 3)
d_values = range(0, 2)
q_values = range(0, 3)
P_values = range(0, 3)
D_values = range(0, 2)
Q_values = range(0, 3)
m_values = [12, 24] # Seasonal periods to try
for _ in range(n_trials):
# Randomly select order and seasonal_order
order = (rng.choice(p_values), rng.choice(d_values), rng.choice(q_values))
seasonal_order = (rng.choice(P_values), rng.choice(D_values), rng.choice(Q_values), rng.choice(m_values))
# Map to int so the print statements look nice :)
order = tuple(map(int, order))
seasonal_order = tuple(map(int, seasonal_order))
try:
model = SARIMAX(train, order=order, seasonal_order=seasonal_order)
model_fit = model.fit(disp=0)
aic = model_fit.aic
if aic < best_aic:
best_aic = aic
best_order = order
best_seasonal_order = seasonal_order
best_model = model
print(f"Tested ARIMA{order}x{seasonal_order} - AIC: {aic:.4f}")
except Exception as e:
# Handle models that fail to converge or encounter errors
print(f"Failed for ARIMA{order}x{seasonal_order}: {e}")
print(f"\nBest Model: ARIMA{best_order}x{best_seasonal_order} - AIC:{best_aic}")
return best_model, best_order, best_seasonal_order
# Perform random search
best_model, best_order, best_seasonal_order = random_arima_search(monthly_train_df)

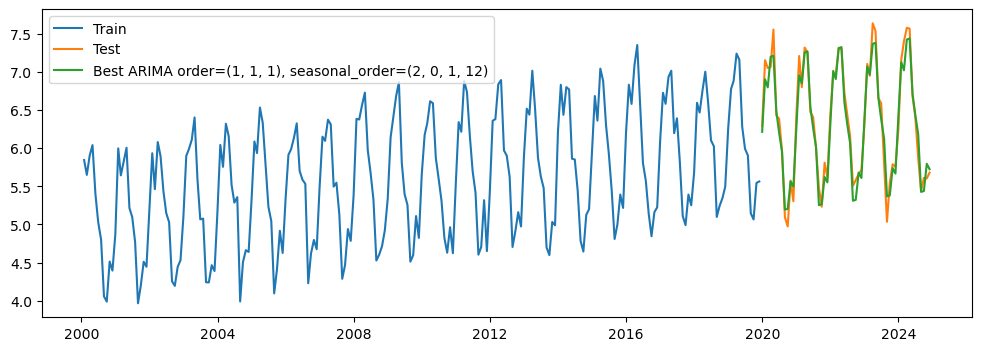

plt.plot(monthly_train_df, label='Train')
plt.plot(monthly_test_df, label='Test')
plt.plot(monthly_test_df.index, fit_and_forecast(best_model, len(monthly_test_df)), label=f'Best ARIMA order={best_order}, seasonal_order={best_seasonal_order}')
plt.legend()
plt.show()
Tested ARIMA(2, 1, 0)x(0, 1, 1, 24) - AIC: -105.7952
Tested ARIMA(1, 0, 2)x(1, 0, 1, 24) - AIC: -76.1827
Tested ARIMA(0, 0, 2)x(1, 0, 0, 24) - AIC: 80.8570
Tested ARIMA(1, 1, 1)x(2, 0, 1, 12) - AIC: -152.9241
Tested ARIMA(1, 0, 1)x(1, 0, 0, 24) - AIC: 2.1976
Best Model: ARIMA(1, 1, 1)x(2, 0, 1, 12) - AIC:-152.92405860711273
LightGBM#
We can turn the forecasting data into tabular form by creating lag features.
Warning
Tree based models cannot make predictions outside of the training data. Below we see the result of this by finding that the model won’t predict a value higher than what was previously observed.
A model will never output a value less than or greater than what it has seen that in the training set!
Define some helper functions to load holidays and generate date characteristics.
def load_holidays(start, end):
''' USFederalHolidayCalendar is the only calendar that exists and primarily serves as an example for developing other calendars.
https://pandas.pydata.org/pandas-docs/version/stable/user_guide/timeseries.html'''
from pandas.tseries.holiday import USFederalHolidayCalendar
holidays = USFederalHolidayCalendar().holidays(
start=start,
end=end,
return_name=True,
)
holiday_df = pd.DataFrame(data=holidays, columns=['holiday']).reset_index().rename(columns={'index':'ds'})
holiday_df['holiday'] = holiday_df['holiday'].astype('category')
return holiday_df
def add_date_features(df):
df['year'] = df['ds'].dt.year
df['month'] = df['ds'].dt.month
df['week'] = df['ds'].dt.isocalendar().week
df['day_of_week'] = df['ds'].dt.dayofweek
df['day_of_month'] = df['ds'].dt.day
df['day_of_year'] = df['ds'].dt.dayofyear
df['is_month_end'] = df['ds'].dt.is_month_end
holiday_df = load_holidays(df.ds.min(), df.ds.max())
return pd.merge(df, holiday_df, how='left', on='ds')
def prep_series_for_gbm(series):
'''Takes a pandas series (train/test) and outputs X, y'''
lgb_df = series.to_frame()
lgb_df = lgb_df.rename(columns={'total': 'y'})
lgb_df['ds'] = lgb_df.index
lgb_df = add_date_features(lgb_df)
X = lgb_df.drop(['y', 'ds'], axis=1)
y = lgb_df['y']
return X, y
# for lag in range(1, 5):
# lgb_train[f't_{lag}'] = lgb_train['y'].shift(lag)
X_train, y_train = prep_series_for_gbm(train_df)
Sine/Cosine Date Features#
This transformation captures the cyclical nature of the data (e.g., day 1 and day 365 are close together in time).
X_train['day_sin'] = np.sin(2*np.pi*X_train['day_of_year']/365)
X_train['day_cos'] = np.cos(2*np.pi*X_train['day_of_year']/365)
X_train['week_sin'] = np.sin(2*np.pi*X_train['week']/52)
X_train['week_cos'] = np.cos(2*np.pi*X_train['week']/52)
X_train['month_sin'] = np.sin(2*np.pi*X_train['month']/12)
X_train['month_cos'] = np.cos(2*np.pi*X_train['month']/12)

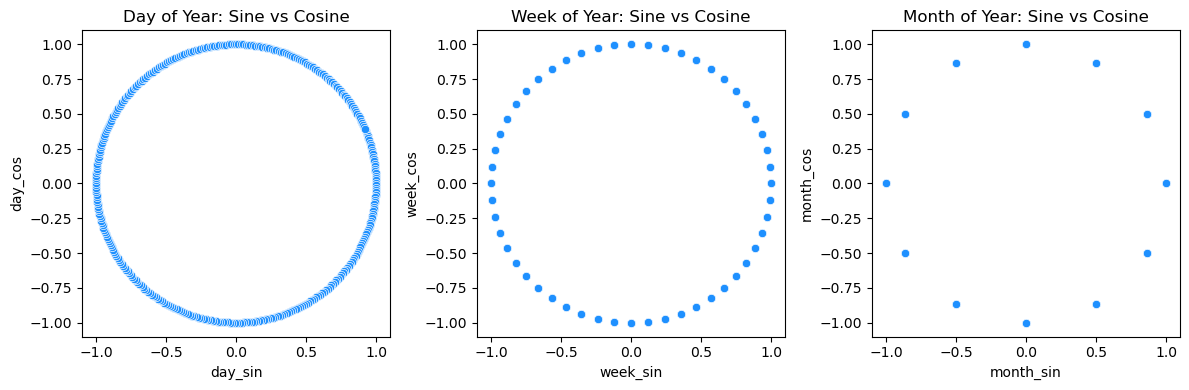

fig, axs = plt.subplots(1, 3, figsize=(12, 4))
sns.scatterplot(x=X_train['day_sin'], y=X_train['day_cos'], color='dodgerblue', ax=axs[0])
axs[0].set_title('Day of Year: Sine vs Cosine')
axs[0].set_xlabel('day_sin')
axs[0].set_ylabel('day_cos')
sns.scatterplot(x=X_train['week_sin'], y=X_train['week_cos'], color='dodgerblue', ax=axs[1])
axs[1].set_title('Week of Year: Sine vs Cosine')
axs[1].set_xlabel('week_sin')
axs[1].set_ylabel('week_cos')
sns.scatterplot(x=X_train['month_sin'], y=X_train['month_cos'], color='dodgerblue', ax=axs[2])
axs[2].set_title('Month of Year: Sine vs Cosine')
axs[2].set_xlabel('month_sin')
axs[2].set_ylabel('month_cos')
plt.tight_layout()
plt.show()
'''Parameter Tuning'''
from sklearn.experimental import enable_halving_search_cv
from sklearn.model_selection import HalvingRandomSearchCV
param_grid = {
'boosting_type': ['gbdt', 'dart'],
'metric': ['l2'],
'learning_rate': rng.uniform(0.01, .5, 10),
'num_leaves': rng.integers(2, 100, 10),
'feature_fraction': rng.uniform(0.25, 1, 10),
'bagging_fraction': rng.uniform(0.25, 1, 10),
'lambda_l1': rng.uniform(0.0, 0.5, 10),
'lambda_l2': rng.uniform(0.0, 0.5, 10),
'min_gain_to_split': rng.uniform(0.01, 0.25, 10),
'verbose': [-1]
}
gbm = lgb.LGBMRegressor()
grid_search = HalvingRandomSearchCV(estimator=gbm, param_distributions=param_grid, scoring='neg_mean_squared_error')
grid_search.fit(X_train, y_train)
params = grid_search.best_params_
gbm = lgb.train(params, lgb.Dataset(X_train, y_train))
X_test, y_test = prep_series_for_gbm(test_df)
pred = gbm.predict(X_test)

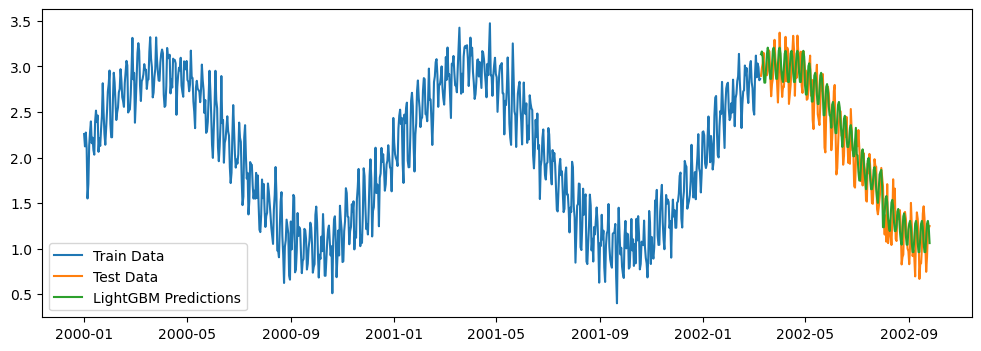

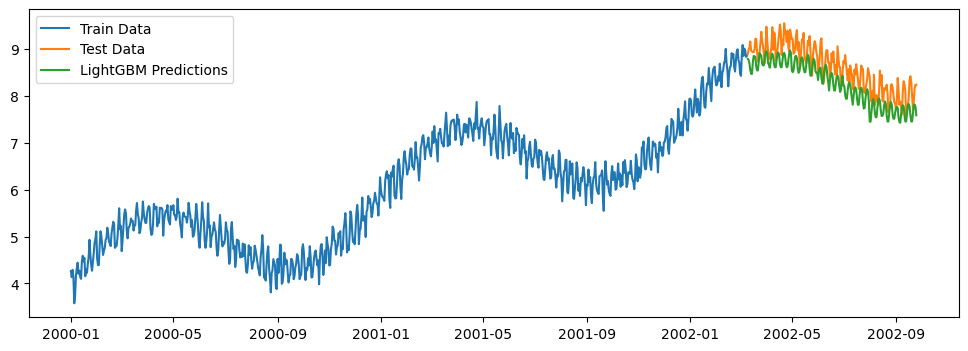

plt.plot(train_df, label='Train Data')
plt.plot(test_df.index, test_df, label='Test Data')
plt.plot(test_df.index, pred, label=f'LightGBM Predictions')
plt.legend()
plt.show()
Detrending the training data
def prep_df_for_gbm(df):
'''Takes a pandas dataframe (train/test) and outputs X, y'''
lgb_df = df.rename(columns={0: 'y'})
lgb_df['ds'] = lgb_df.index
lgb_df = add_date_features(lgb_df)
X = lgb_df.drop(['y', 'ds'], axis=1)
y = lgb_df['y']
return X, y
lgb_train = (train_df - df.iloc[:len(train_df)]['trend']).to_frame()
lgb_test = (test_df - df.iloc[len(train_df):]['trend']).to_frame()
X_train, y_train = prep_df_for_gbm(lgb_train)
X_test, y_test = prep_df_for_gbm(lgb_test)
params = grid_search.best_params_
gbm = lgb.train(params, lgb.Dataset(X_train, y_train))
X_test, y_test = prep_series_for_gbm(test_df)
pred = gbm.predict(X_test)

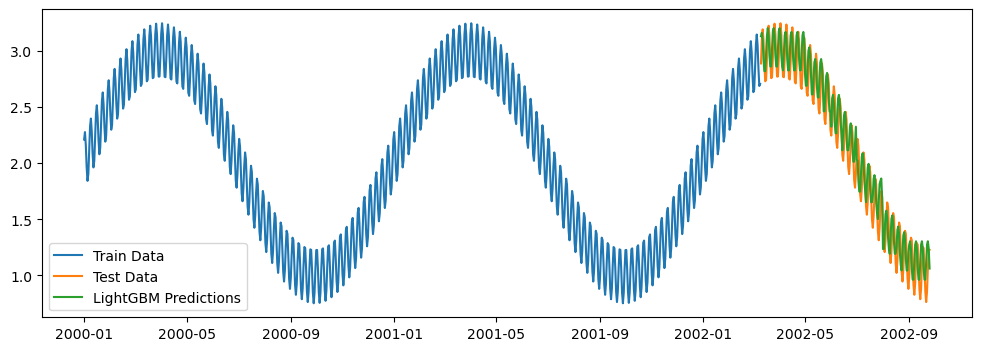

plt.plot(lgb_train, label='Train Data')
plt.plot(lgb_test, label='Test Data')
plt.plot(test_df.index, pred, label=f'LightGBM Predictions')
plt.legend()
plt.show()
If you also take away the noise, you’ll see that LightGBM did a pretty great job filtering it out.
plt.plot(lgb_train[0] - df.iloc[:len(train_df)]['noise'] + 2, label='Train Data')
plt.plot(lgb_test[0]- df.iloc[len(train_df):]['noise']+2, label='Test Data')
plt.plot(test_df.index, pred, label=f'LightGBM Predictions')
plt.legend()
plt.show()
Recursive predictions. TODO
Show code cell source
# params = grid_search.best_params_ #{'verbose': -1, 'num_leaves': 55, 'min_gain_to_split': 0.06764624350073846, 'metric': 'l2', 'learning_rate': 0.32486093534861593, 'lambda_l2': 0.35299651007555277, 'lambda_l1': 0.10706850623011366, 'feature_fraction': 0.8261402761937192, 'boosting_type': 'gbdt', 'bagging_fraction': 0.843250629681239}
# gbm = lgb.train(params, lgb.Dataset(X, y))
# X_test = pd.DataFrame(index=test.index) # Create an empty DataFrame for test features
# for lag in range(1, 5):
# X_test[f't_{lag}'] = 0.0 # Initialize the lag columns for the test data
# # Fill the initial lag values in the test dataframe based on the last values in the training data
# last_train_values = lgb_train.iloc[-1][['t_1', 't_2', 't_3', 't_4']].values
# X_test.iloc[0, :] = last_train_values
# predictions = []
# # Recursive prediction for len(test) iterations
# for i, ds in enumerate(test.index):
# X_test['ds'] = ds
# X_test = add_date_features(X_test)
# # Make a prediction for the current test instance
# pred = gbm.predict(X_test.iloc[[i]].drop(columns=['ds']))[0]
# predictions.append(pred)
# # Prepare the next row of X_test by shifting the lag values
# if i + 1 < len(test):
# X_test.iloc[i + 1, 1:] = X_test.iloc[i, :-1].values # Shift the lag features
# X_test.iloc[i + 1, 0] = pred # Add the new prediction as the most recent lag feature
# # Convert predictions list to a pandas series to plot
# predictions_series = pd.Series(predictions, index=test.index)
# plt.plot(train, label='Train Data')
# plt.plot(test.index, test, label='Test Data')
# plt.plot(test.index, predictions, label=f'LightGBM Predictions')
# plt.legend()
# plt.show()
Matrix Profiles #
The idea here is that we find the nearest neighbor in the time series based on euclidean distance. We split the data into “windows” that are just smaller chunks of data. For example, if you had daily data and wanted to compare weekly trends, you’d use a window of size 7.
The lowest values are considered a motif (pattern) since they represent the pair of nearest neighbor subsequences with the smallest z-normalized Euclidean distance.
The subsequences that have the highest local values are unique.
import stumpy
from matplotlib.patches import Rectangle
# Removing the date index and adding +2 for easier plotting
anomoly_data = df['yearly_seasonality'].reset_index(drop=True)+2
# Adding some anomolies
for start, end in [(100, 105), (400, 420), (600, 610)]:
anomoly_data[start:end] = anomoly_data[start:end] * 0.9

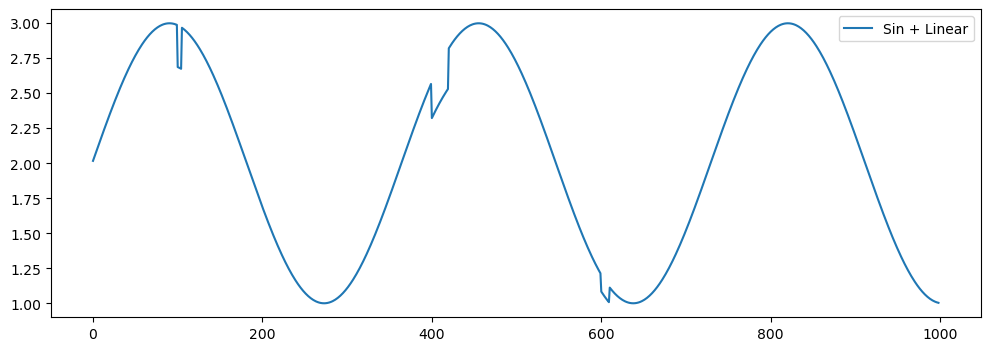

plt.plot(anomoly_data, label='Sin + Linear')
plt.legend()
plt.show()
m = 7
matrix_profile = stumpy.stump(anomoly_data, m=m)
'''
matrix_profile contains 4 columns:
1. matrix profile,
2. matrix profile indices,
3. left matrix profile indices,
4. right matrix profile indices.
'''
mp_df = pd.DataFrame({
"matrix_profile": matrix_profile[:,0],
"indices": matrix_profile[:,1],
"left_indices": matrix_profile[:,2],
"right_indices": matrix_profile[:,3]
})
mp_df.head()
| matrix_profile | indices | left_indices | right_indices | |
|---|---|---|---|---|
| 0 | 0.0 | 730 | -1 | 730 |
| 1 | 0.0 | 731 | -1 | 731 |
| 2 | 0.0 | 367 | -1 | 367 |
| 3 | 0.0 | 368 | 0 | 368 |
| 4 | 0.0 | 369 | 1 | 369 |

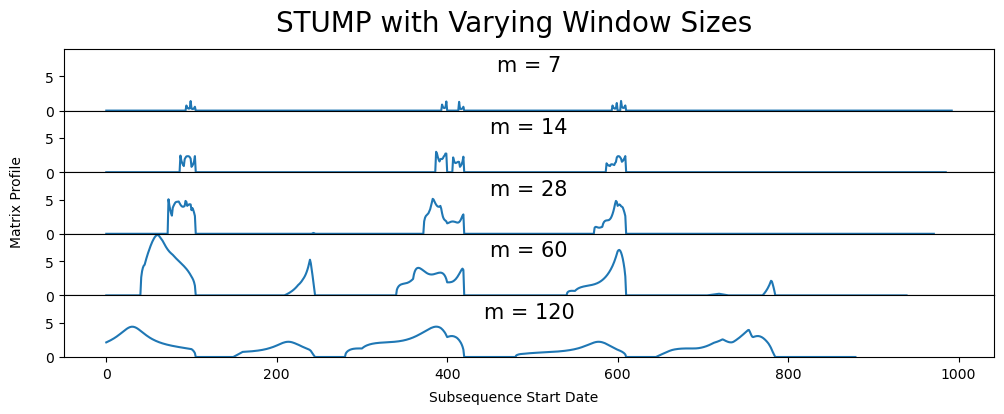

fig, axs = plt.subplots(5, sharex=True, gridspec_kw={'hspace': 0})
plt.suptitle('STUMP with Varying Window Sizes', fontsize='20')
fig.text(0.5, 0, 'Subsequence Start Date', ha='center', fontsize='10')
fig.text(0.08, 0.5, 'Matrix Profile', va='center', rotation='vertical', fontsize='10')
for i, varying_m in enumerate([7, 14, 28, 60, 120]):
mp = stumpy.stump(anomoly_data, m=varying_m)
axs[i].plot(mp[:, 0])
axs[i].set_ylim(0, 9)
title = f"m = {varying_m}"
axs[i].set_title(title, fontsize=15, y=.5)
Motif / Pattern#
The matrix profile allows you to find patterns and also the nearest neighbor for all subsequences.
motif_idx = np.argsort(matrix_profile[:, 0])[0]
print(f"The motif is located at index {motif_idx}")
nearest_neighbor_idx = matrix_profile[motif_idx, 1]
print(f"The nearest neighbor is located at index {nearest_neighbor_idx}")

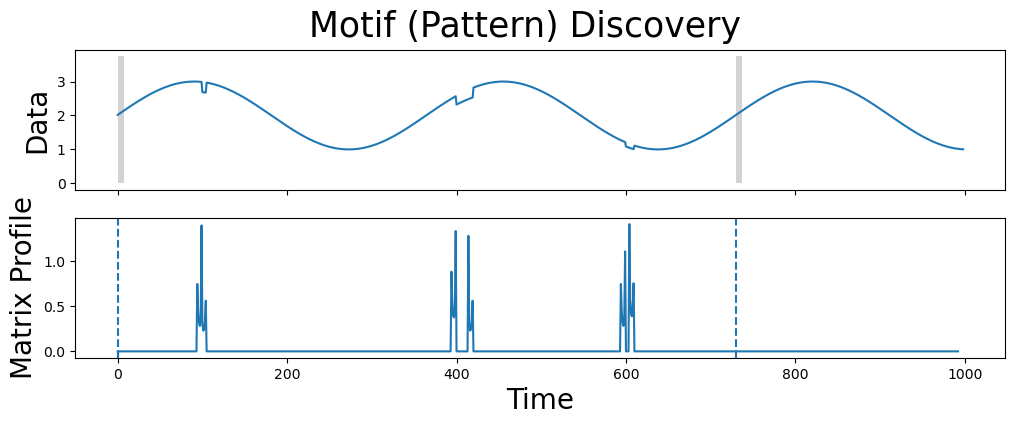

fig, axs = plt.subplots(2, figsize=(12, 4), sharex=True)
plt.suptitle('Motif (Pattern) Discovery', fontsize='25')
axs[0].plot(anomoly_data)
axs[0].add_patch(Rectangle((motif_idx, 0), m, anomoly_data.max()*1.25, facecolor='lightgrey'))
axs[0].add_patch(Rectangle((nearest_neighbor_idx, 0), m, anomoly_data.max()*1.25, facecolor='lightgrey'))
axs[0].set_ylabel('Data', fontsize='20')
axs[1].set_xlabel('Time', fontsize ='20')
axs[1].set_ylabel('Matrix Profile', fontsize='20')
axs[1].axvline(x=motif_idx, linestyle="dashed")
axs[1].axvline(x=nearest_neighbor_idx, linestyle="dashed")
axs[1].plot(matrix_profile[:, 0])
plt.show()
The motif is located at index 0
The nearest neighbor is located at index 730
Potential Anomolies#
The subsequence located at this global maximum is referred to as a discord, novelty, or potential anomaly.
discord_idx = np.argsort(matrix_profile[:, 0])[-1]
print(f"The discord is located at index {discord_idx}")
nearest_neighbor_distance = matrix_profile[discord_idx, 0]
print(f"The nearest neighbor subsequence to this discord is {nearest_neighbor_distance} units away")

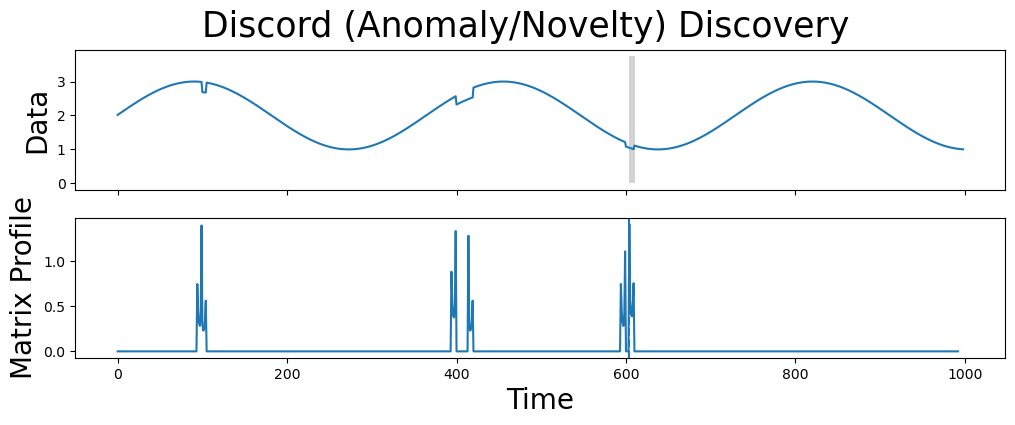

fig, axs = plt.subplots(2, figsize=(12, 4), sharex=True)
plt.suptitle('Discord (Anomaly/Novelty) Discovery', fontsize='25')
axs[0].plot(anomoly_data)
axs[0].set_ylabel('Data', fontsize='20')
axs[0].add_patch(Rectangle((discord_idx, 0), m, anomoly_data.max()*1.25, facecolor='lightgrey'))
axs[1].set_xlabel('Time', fontsize ='20')
axs[1].set_ylabel('Matrix Profile', fontsize='20')
axs[1].axvline(x=discord_idx, linestyle="dashed")
axs[1].plot(matrix_profile[:, 0])
plt.show()
The discord is located at index 604
The nearest neighbor subsequence to this discord is 1.4067575559258207 units away
Box-Cox Transformation #
Transforms the target variable so that data resembles a normal distribution which is assumed by many models.
Cons:
Harder to interprete
Usually gives the median of the forecast distribution when we revert the transformed data to its original scale.
data = rng.exponential(scale=2, size=1000)
transformed_data, lambda_best = stats.boxcox(data)

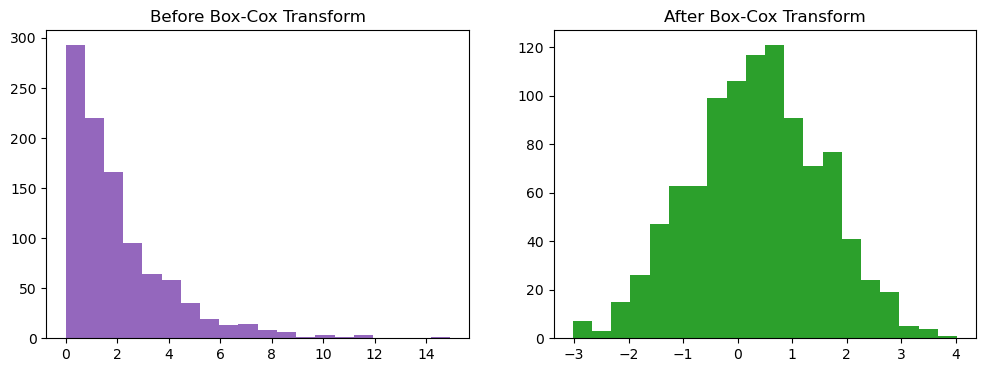

plt.subplot(1, 2, 1)
plt.hist(data, bins=20, color='tab:purple')
plt.title("Before Box-Cox Transform")
plt.subplot(1, 2, 2)
plt.hist(transformed_data, bins=20, color='tab:green')
plt.title("After Box-Cox Transform")
plt.show()
Portmanteau Test #
Hypothesis test for the presence of autocorrelation.
Ljung-Box Test#
Ljung-Box test of autocorrelation in residuals is commonly applied to the residuals of a time series model, such as ARIMA or other time series models, to test whether they are independent (i.e., no autocorrelation remains in the residuals).
A p-value is greater than 0.05 implies that no significant autocorrelation remains in the residuals, and the model is a good fit from the perspective of autocorrelation.
acorr_ljungbox outputs:
lb_stat: The Ljung-Box test statistic.
lb_pvalue: The p-value associated with the test statistic. A small p-value indicates that significant autocorrelation exists at the tested lags.
acorr_ljungbox(train_df, lags=[7, 14, 365], return_df=True)
| lb_stat | lb_pvalue | |
|---|---|---|
| 7 | 5004.563971 | 0.0 |
| 14 | 9648.760599 | 0.0 |
| 365 | 43432.463826 | 0.0 |
